Product Introduction:

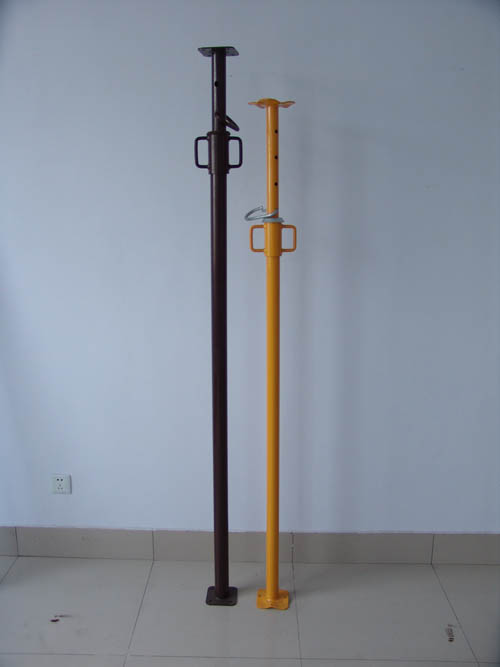

   Shoring props is an inner supporting product in building area for supporing the concretes,the material is seamless steel pipe---Q235, it is mainly composed of four parts: inner tube, outer tube, top&base plate and nut. This product had passed the certification of ISO9001 and ISO14001.



Product specification


Diameter of the inner tube (mm)
40/48/48.3
Diameter of the outer tube (mm)
48/56/60
Thickness of the inner tube (mm)
1.7/1.8/2.0/2.5
Thickness of the outer tube (mm)
1.7/1.8/2.0/2.5
Adjustable length (mm)
Any length you need
Top&base plate sizes (mm)
120*120*5/6
Finishing
Painting/ powder coated/ galvanized
Raw material
Seamless steel pipe Q-235
