Top Template supporting Combination Strurcture
norms£º
note£º
categories£º
Formwork Props

   Products said Ming
The top template supporting combination sturcture
The Reference form of component weight / per
Order
Component
Specification M/bar
Weight KG/bar
1
NO 1 main beam
2.68-4.39
20.45
2
NO 2 main beam
2.28-3.68
17.35
3
NO 3 main beam
1.77-2.88
13.55
4
NO 4 main beam
1.12-1.78
8.43
5
sub-beam
1.15
3.25
6
sub-beam
0.80
2.35
7
sub-beam
0.40
1.25
8
adjustive base
0.50¡Á0.6
4.3
9
42adjustive mandril
2.00
4.97
10
48adjustive mandril
2.00
6.45
11
brace
2.70
2.35
12
hawk mouth alike clip

0.23
13
adjustive supporting pole
2-3.1
11
2.4-4
13.5
2.6-4.3
14.5
2.8-4.8
15.1
The distance between two sub-beams is 30.5cm
The side distance24.5cm

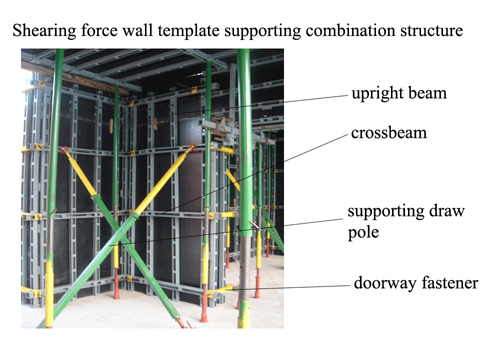

Shearing force wall template Supporting Combination Structure
The reference form of component weight/pe
r
Order
Component
Specification M/bar
Weight KG/bar
1
NO 1 crossbeam
3.05-4.70
19.20
2
NO 2 crossbeam
2.35-3.45
14.10
3
NO 3 crossbeam
1.65-2.45
10.20
4
upright beam
2.60-3.20
10.70
5
external angle
0.80*0.80
7.00
6
internal angle
0.40*0.40
4.20
7
supporting draw pole
1.80-3.60
12.35
10
doorway fastener
0.18-0.38
2.60
