 Packing strapping >> Steel strapping >> Steel Strapping


Numbers
32216221116
name
Steel Strapping
norms
note
categories
Packing strapping

   Products said Ming
 [Sort of steel packing strips]:
(1) White steel packing strips
(2) Blue steel packing strips
(3) Paint baked steel packing strips(black, green, gray, yellow etc.)
[Mechanical properties]:
(1)Ordinary steel strips():
Tensile strengthb58-78Kg/mm2(580-780Mpa),elongation3%-5%
(2)Ordinary steel strips():
Tensile strengthb78-90Kg/mm2(780-900Mpa),elongation3%-5%
(3)High quality steel strips:
High intensity, good capability, bearing impact. tensile strength: 90-110Kg/mm2 (900-1100Mpa) , elongation5%-8%

[Specification]:
BWG283/8塢1/2塢5/8壨0.36mm9.5mm12.7mm16mm
BWG273/8塢1/2塢5/8壨0.40mm9.5mm12.7mm16mm
BWG261/2塢5/8塢3/4壨0.45mm12.7mm16mm19mm
BWG251/2塢5/8塢3/4壨0.50mm12.7mm16mm19mm
BWG241/2塢5/8塢3/4壨0.55mm12.7mm16mm19mm
BWG231/2塢5/8塢3/4壨0.60mm12.7mm16mm19mm
BWG223/4塢1塢5/4壨0.70mm19mm25.4mm32mm
BWG213/4塢1塢5/4壨0.80mm19mm25.4mm32mm
BWG203/4塢1塢5/4壨0.90mm19mm25.4mm32mm
BWG193/4塢1塢5/4壨1.0mm19mm25.4mm32mm
[Packaging for steel strapping seals]:
Usually use box or fiber bag, We can also pack as per customers requirements.
[steel strapping seals performance standard]:
GB4173-4.We can also manufacture as per customers quality standard orders.
[Others]:
We can produce special specification as per customers request, and we can make the edge smoother of the steel packing strips.

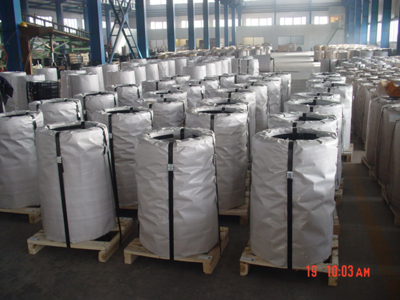

[Packing]:
The product include ribbon and oscillated steel packing strips
(continually apply to pack machinery),inner diameter is 200mm300mm406mm.502Kg/Bundle. Inner is protect humidity-proof wax paper. Medium is plastic film. Outer is sackcloth and compound paper packing. Delivered in wooden pallets or iron pallets. Ribbon steel strips:
weight per pallet is 1-2 metric ton. Oscillated steel strips: weight per pallet is 0.5-0.9 metric ton
